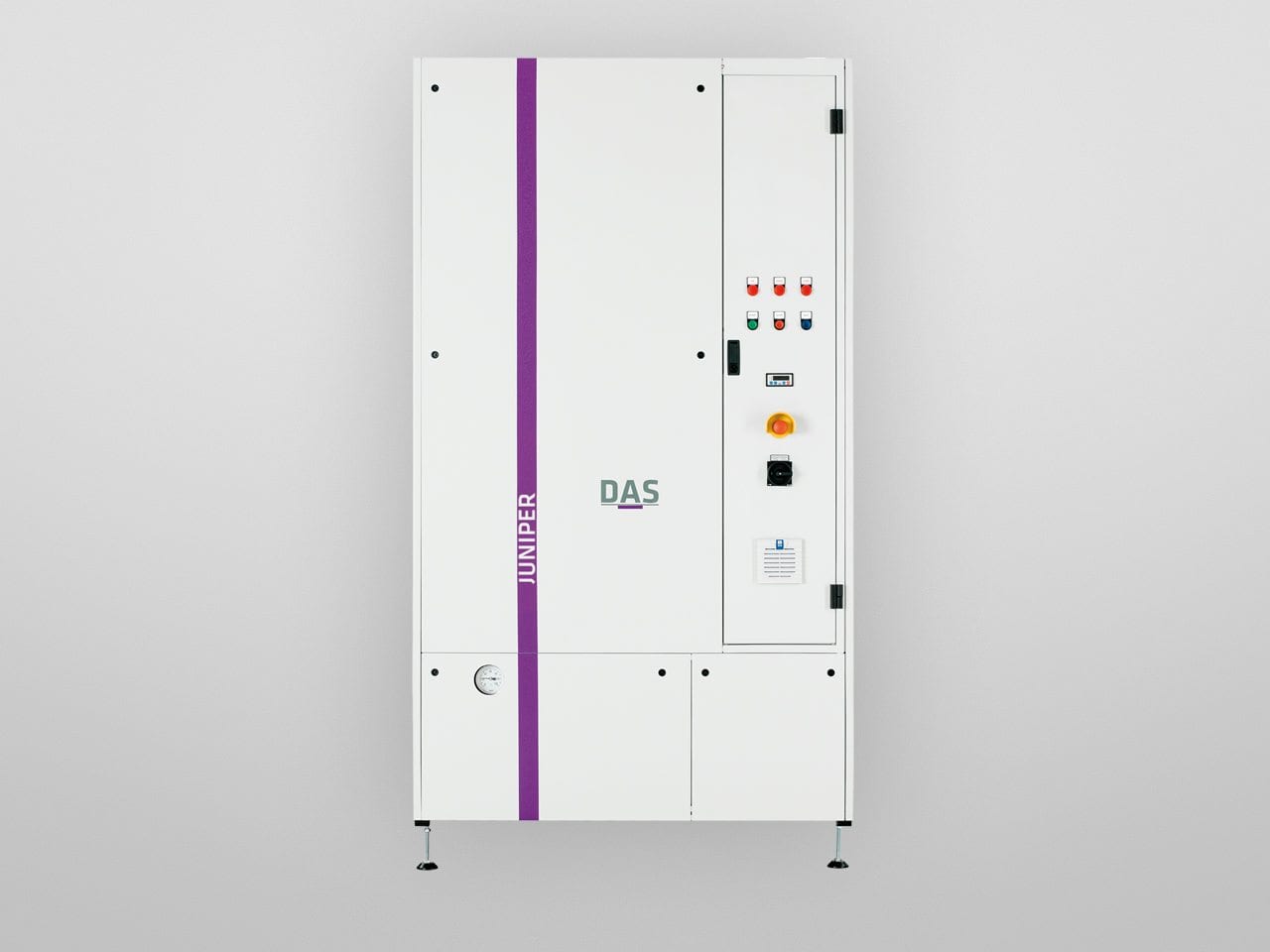

Point-of-Use Waste Gas Treatment with Condensate Separator JUNIPER

The electrostatic condensate separator JUNIPER reliably and cost-effectively removes condensable organic compounds (VOC´s) like those that accrue in manufacturing fabs in the photovoltaic industry. The system prevents exhaust blockage through condensates.

Waste Gas Treatment – JUNIPER

Treatment of Waste Gases with JUNIPER

JUNIPER separation rates are up to 98%. The system reduces the overall carbon content of waste gases, and in addition, separates dusts from the waste gases. Essential advantages of this system are its low energy consumption and small foot print. Access for operating and maintenance is found on the front and back sides as at most DAS tools.

JUNIPER – Operating Principle

The waste gas flows are entered quickly into the system. Hot waste gas enters a cooler and the temperature is reduced to the organic compounds’ condensation temperature. Afterwards, aerosols are channeled through separator columns, where its ionized, and condensed components are deposited on grounded metal tubes. The separated condensate flows back into the tank where it is collected. It can be pumped out automatically or drained manually.

Electrostatic Condensate Separation with JUNIPER at the Point-Of-Use

JUNIPER is an electrostatic condensate separator and capable of handling waste gas flows up to 1000 m3/h as they accrue for example in the photovoltaics industry. Volatile, condensable organic compounds are removed reliably and cost-effectively. Detailed background on the reduction of these substances in the solar cell manufacturing is available in our case study.

Specifications

  • Efficient reduction of condensable organic carbon compounds
  • Collection of the condensate in a tank, separation of dust particles
  • High safety standards as all critical parameters are sensor monitored
  • Interface to upstream process systems

Technical Data

  • Dimensions (B x T x H): 1170 mm x 1180 mm x 2110 mm
  • Access to maintenance area on front and back side
  • Gas entry: DN250
  • Gas outlet: DN150

Options

The following equipment options are available for all JUNIPER systems:

  • Power Supply: 3 x 400 V/50 Hz or 3 x 208 V/60 Hz
  • Condensate pump
  • Signal Tower
  • Drip Pan
  • Earthquake Safety Kit
